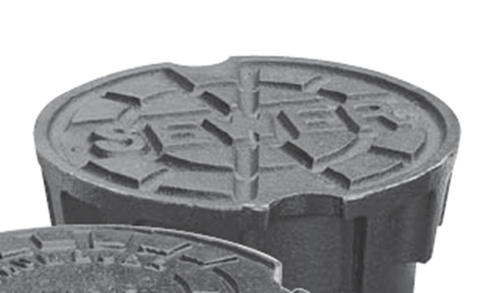

STANDARD VALVE BOX LIDS

Our Valve Box Lids are made for:

• 5-1/4″ shaft Buffalo style 2-piece valve boxes
• Trumbull Risers
• “RITE-HITE” adapters
• Housing Adapters for Trumbull Valve Position Indicators.

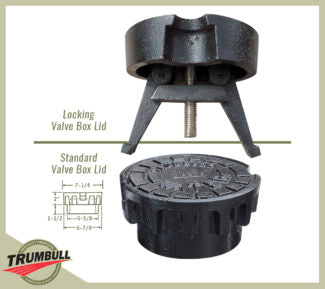

• Dimensions:
  • Top portion thickness 2".
  • 7-1/4" Diameter at top of top portion, tapering to 6-7/8".
  • 1-1/2" bottom portion is 5-5/8" diameter at the bottom.

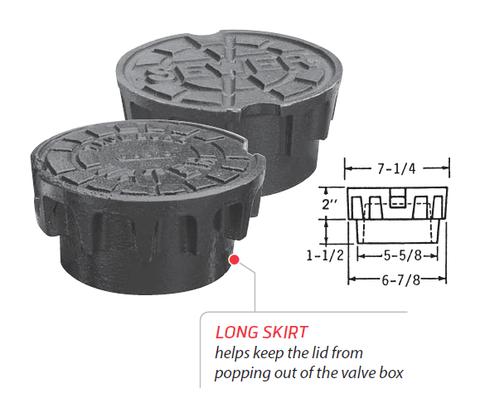

Long skirt helps keep the lid from popping out of the valve box.

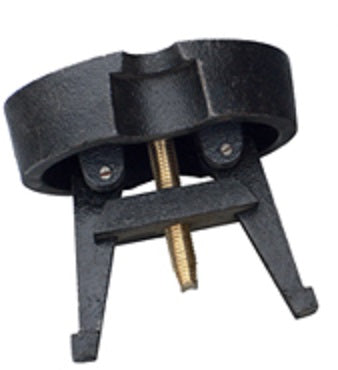

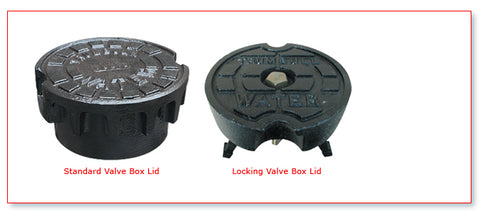

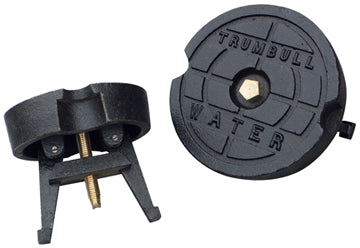

LOCKING VALVE BOX LIDS

Locking Lids discourage unauthorized access to valve boxes, noisy loose fitting valve box lids, or lids that get knocked out with traffic. Tightening the standard brass pentagon screw causes the jaws to expand bearing against inside of valve box.

Inside dimensions of valve boxes will vary by manufacturer. If lid is not tight enough, flip the wedge for a tighter fit.

Lids are marked "WATER" on top and fit most standard 5-1/4" valve boxes. These are heavy duty cast iron with brass pentagon operating nut and tightening bolt.

• Discourage Unauthorized Access
• Provides tight fit for odd size, broken, or ill fitting valve boxes

• Prevent lids being knocked out in traffic and vehicle damager or personal injury in that event
• Stop complaints of noisy loose valve boxes.
• Reduce chances of theft from scrappers.
