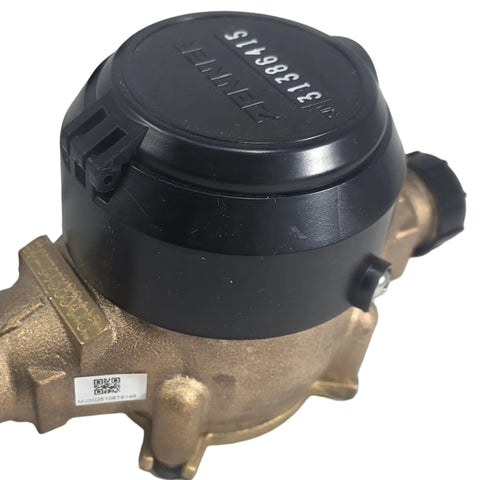

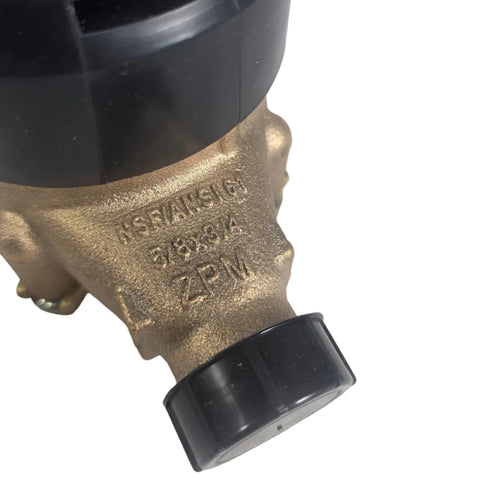

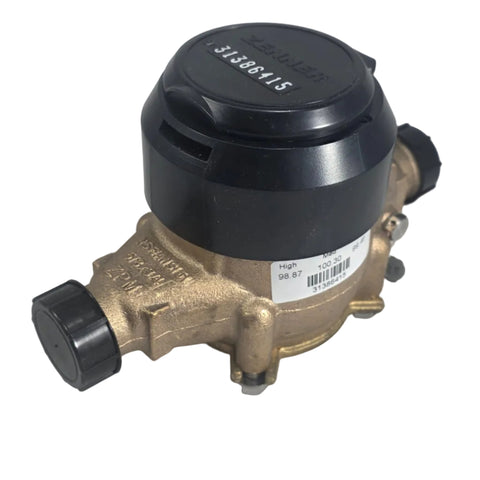

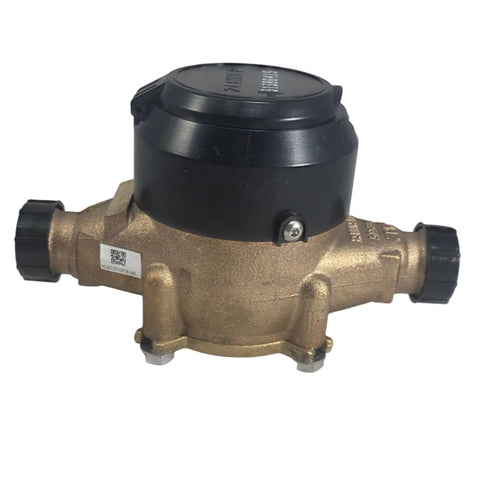

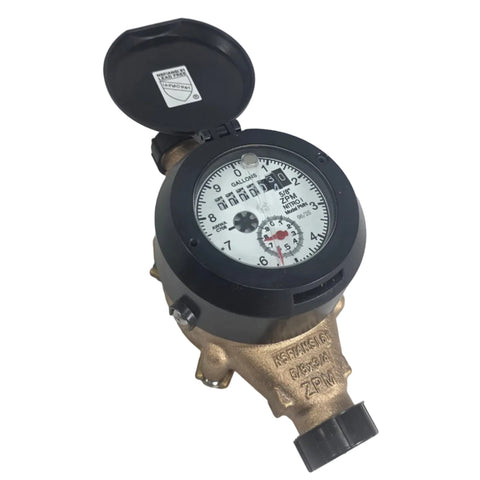

Zenner 5/8" x 3/4" multi-jet Water meter, US Gallon Local Read Register
ZENNER
- Multi-Jet Type Magnetic Drive
- Cold Water Meters NITRO I
- Model PMN
- Size: 5/8" x 3/4"
- Registration: US Gallons

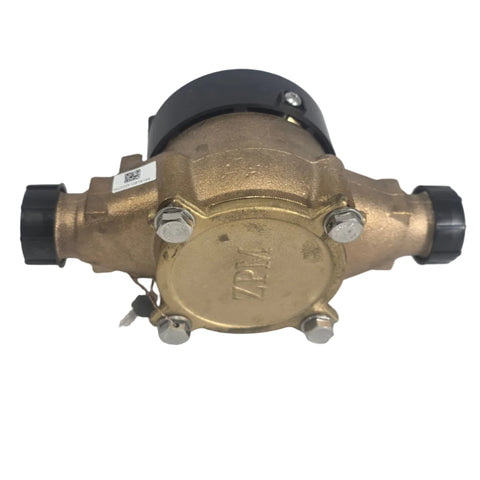

- Bottom Plate: Brass
- External Output - (Upgradable, not included)
- Uses 3/4" Meter couplings (Sold Separately)
INTRODUCTION: ZENNER PMN Water Meters utilize a magnetically
driven multi-jet design. They are designed to measure cold
potable water where flow is in one direction only in residential,
commercial, and industrial settings.
OPERATION: Water flows through the meter’s strainer and into the measuring chamber where it drives the impeller. A drive magnet transmits the motion of the impeller to a driven magnet located within the hermetically sealed register. Powerful rare earth magnets eliminate slipping and uncoupling to increase overall accuracy. The magnet is connected to a gear train which translates the impeller’s rotation into volume totalization displayed on the register dial face.
CONSTRUCTION: ZENNER PMN Water Meters consist of three basic components: main case, measuring chamber and sealed register. The main cases are constructed using either C89833 or C89850 Brass Alloys. Measuring Chambers are constructed of a durable synthetic polymer. Registers are available as either direct read or electronic output.
MAINTENANCE: ZENNER PMN Water Meters are engineered and manufactured to provide long-term service and operate virtually maintenance free. The precise simple design allows for interchangeable parts, reducing parts inventory.

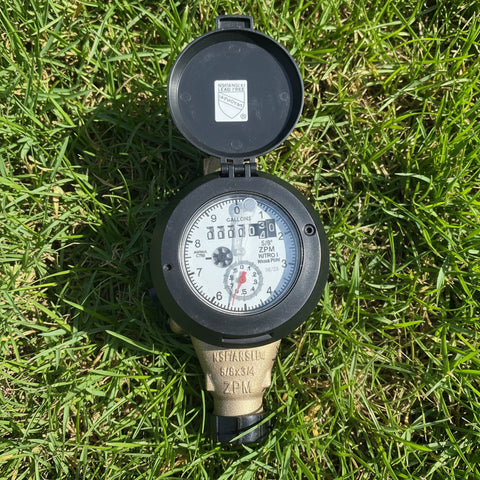

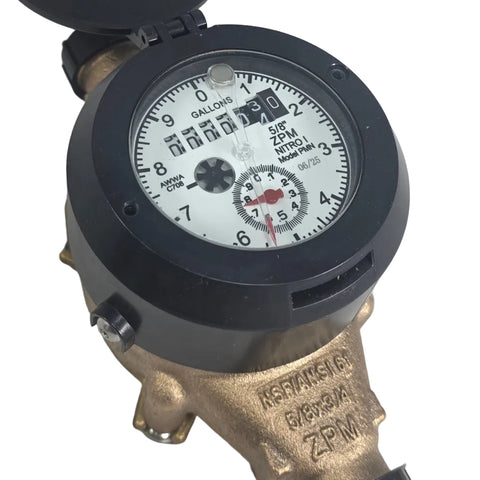

REGISTRATION: ZENNER PMN Water Meters utilize a magnetically driven, hermetically sealed design. The sealed design eliminates dirt, moisture infiltration, and prevents fogging. The register includes a large odometer-type totalization display, center sweep hand (360°) test circle, low flow leak detector. All ZENNER Meters have electronic output capabilities for easy conversion to Automated Meter Reading. 5/8” through 1” capacities
are: 10,000,000 Gallons, 1,000,000 Cubic Feet, 100,000 Cubic Meters, 6 odometer wheels.
CONFORMANCE: ZENNER PMN Water Meters are tested and comply with AWWA C708, ISO 4064, and G13IT19001-ISO9000 performance standards. These Meters comply with the lead-free provisions of the Safe Drinking Water Act and are certified to NSF/ANSI Standards 61 and 372.
TAMPERPROOF FEATURES: Customer removal of the register to obtain free water is prevented through the use of a locking device that requires a special tool, only available to water utilities.
CONNECTIONS: These meters have been designed with ease of installation in mind through the use of built-in wrench pads on meter sizes 5/8” through 1”. Tailpiece/Unions for installations of meters are available as an option for various pipe types, sizes, and misaligned pipes. The 1-1/2” PMN09 and 2” PMN12 flanged meters come with a built-in 1” test port.
Don't for get a set of 3/4" meter couplings if for a new installation.
